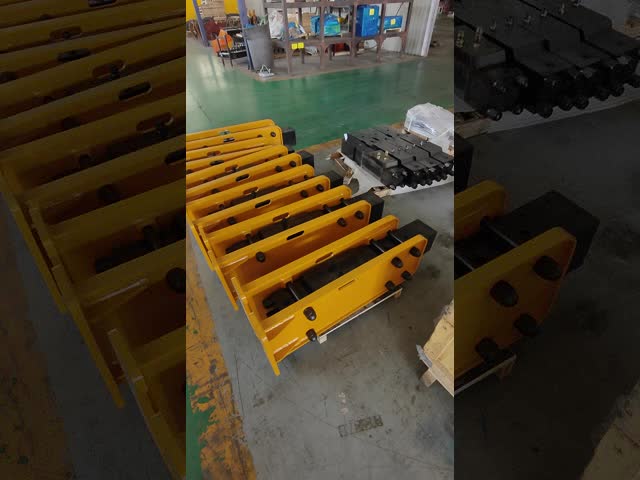

HOPE Hydraulic Breaker
HOPE hydraulic breaker
Advanced technology, precise and powerful strikes, increase efficiency and reduce costs.
Sturdy and durable, with less maintenance.
Easy to operate, simple to maintain, and excellent after-sales service.
Powerful, efficient, reliable, and applicable to various projects.
Description
1.With high-quality oil seals,the products have the feature of good sealing function,high temperature resistance and corrosion resistance.
The products can adopt to the vibration of the machine and the egocentricity of the spindle to provide a long time service.
2.Using the high-quality carbon structural steel,the screws have higher strength,good mechanical properties and deformation resistance.
3.Outstanding weight ratio.
4.Less maintenance cost.
| ITEMS | SIDE TYPE BREAKER | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Models | 35 | 40 | 45 | 53 | 68 | 70 | 75 | 85 | 100 | 140 | 155 | 165 | 175 | 185 | 195 |
| Gross Weight(kg) | 85 | 85 | 120 | 180 | 270 | 270 | 385 | 600 | 820 | 1735 | 2500 | 2700 | 3680 | 4200 | 4500 |
| Length(mm) | 912 | 912 | 1073 | 1156 | 1359 | 1359 | 1574 | 1730 | 1900 | 2480 | 2770 | 2820 | 3180 | 3320 | 3420 |
| Driving Flow-Rate(litre/min) | 15-25 | 15-25 | 20-30 | 25-50 | 40-70 | 40-70 | 50-90 | 60-100 | 80-110 | 120-180 | 180-240 | 200-260 | 210-290 | 220-290 | 220-290 |
| Operating Pressure(Kg/cm2) | 90-120 | 90-120 | 90-120 | 90-120 | 95-130 | 95-130 | 120-150 | 130-160 | 150-170 | 160-180 | 160-180 | 160-180 | 160-180 | 180-220 | 180-220 |
| Striking Frequency(b.m.p) | 800-1400 | 800-1400 | 700-1200 | 600-1100 | 500-900 | 500-900 | 400-800 | 400-800 | 350-700 | 350-500 | 350-450 | 250-400 | 200-350 | 200-250 | 180-200 |
| Hose Diameter(inch) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 1 | 5/4 | 5/4 | 5/4 | 5/4 | 5/4 |
| Rod Diameter(mm) | 35 | 40 | 45 | 53 | 68 | 70 | 75 | 85 | 100 | 140 | 155 | 165 | 175 | 185 | 195 |
| Applicable Vehicle Weight(ton) | 0.8-2.5 | 0.8-2.5 | 1.2-3 | 2-3.5 | 4-6 | 4-6 | 4.5-7 | 7-14 | 10-15 | 18-26 | 28-35 | 30-40 | 35-50 | 35-55 | 40-55 |
ABOUT US
Yantai Hope Precision Machinery Co., Ltd. adopts world-class production lines, high-quality alloy steel, advanced and reasonable oil channel design, rigorous heat treatment technology, first-class professional R&D team and more than 10 years of production experience. It has super striking power, stable work, economical and durable, and is suitable for various harsh working environments.Relying on global resources, it occupies the most cutting-edge information and development advantages, and leads the cutting-edge of excavators.
The hydraulic breaker and other equipment produced by the company have successfully passed the ISO9001/2000 international quality management system certification and EU-CE certification with excellent quality control system, and have been selected into the "preferred domestic brand" of the China Council for the Promotion of International Trade.
The company has always regarded product quality as the life of the enterprise.With advanced and high precision production and testing equipment, high quality technical personnel, combined with the quality management system, the accuracy and stability of product performance have been greatly improved, and the product has been comprehensively and strictly inspected before leaving the company, making the product quality more prominent in the construction machinery industry.
